NEW QUESTION # 16
Choose the correct answer.

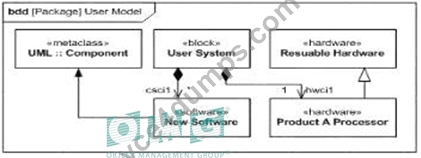

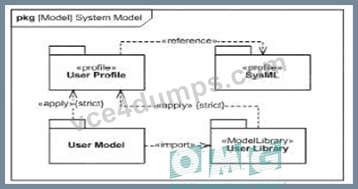

Given the following package diagram depicting profile and model library relationships to a user model.

The User Profile extends SysML with two new stereotypes of Block Hardware and Software.

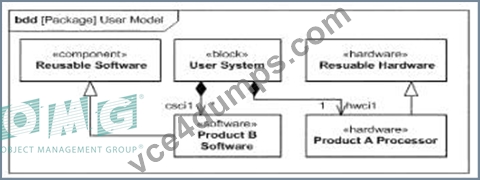

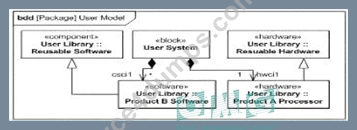

Which bdd fragment is valid, yet does not contain unnecessary or redundant information?

Answer: A

NEW QUESTION # 17
Choose the correct answer.

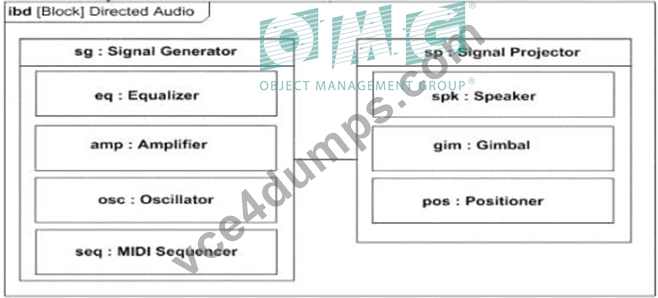

Given a system for keeping birds away from airports One component, described by the following diagram directs audio signals at birds that approach a runway, its parts, as part properties, are typed by blocks.

A systems engineer has identified some blacks that type the pan properties, but as the design becomes more specific, the engineer discovers that these blocks exist in multiple variants.
What modeling choice does the engineer face at this point?

A. whether to model variants of blocks that type part properties as (a) implicit subclasses of the blocks, or (b) part-specific types
B. whether to model part properties as (a) a library, or (b) a logical hierarchy
C. whether to model part properties as (a) a library or (b) a hierarchy of non-composite relationships
D. whether to model variants of blocks that type part properties as (a) explicit subclasses of the blocks, or (b) part-specific types.

Answer: B

NEW QUESTION # 18
Choose the correct answer.

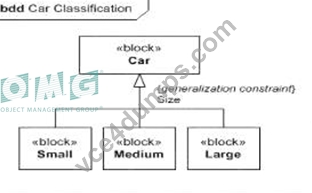

Given the following diagram:

Which generalization constraint keywords should be used to specify that:
1- the set of all instances of Car is not fully covered by its three shown subtypes, Small, Medium, and Large, AND
2- an instance of Car is exclusively either Small Medium, or Large

A. {Incomplete, xor)
B. (partial, exclusive)
C. (incomplete disjoint)
D. (not full, exclusive)
E. {subset, disjoint}

Answer: A

NEW QUESTION # 19
Choose the correct answer
The following are behavioral requirements for an automobile electric window (1) When the window button is moved into the up position and the window is not fully up the window shall begin to move up (?) When the window button is moved into the down position and the window is not hilly down, the window shall begin to move down (3) When the window button is released or the window reaches the fully up or fully down position, the window shall stop moving (4) Requirements (1-3) apply when the ignition is on. However, turning the ignition off shall lake effect only after the window has stopped moving.

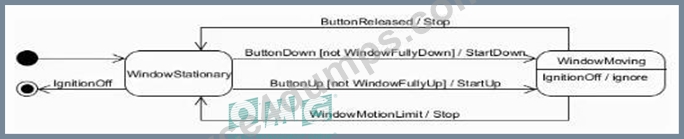

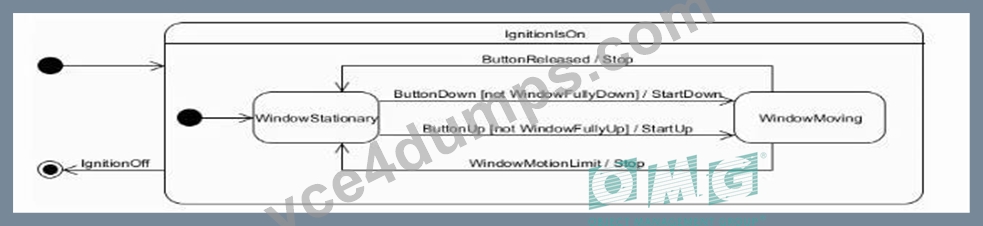

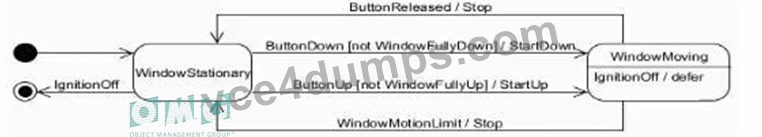

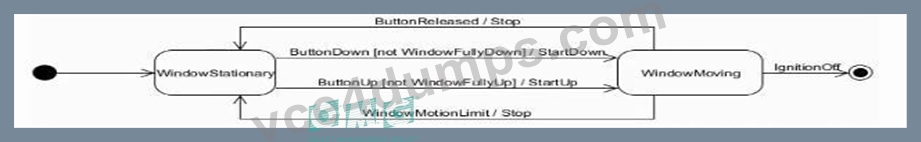

Which state machine diagram fragment describes the required behavior?
A)

B)

C)

D)

E)

A. Option B
B. Option C
C. Option D
D. Option A
E. Option E

Answer: D

NEW QUESTION # 20
Choose the correct answer.

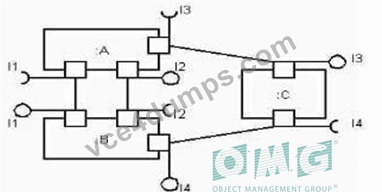

Given the following ibd fragment:

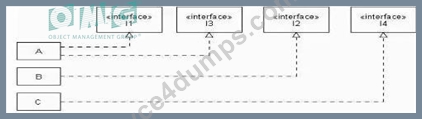

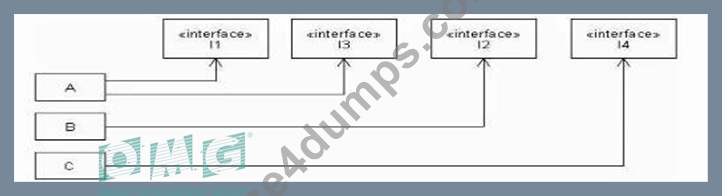

Select the bdd fragment that corresponds
A)

B)

C)

D)

A. Option B
B. Option C
C. Option D
D. Option A

Answer: D

NEW QUESTION # 21
Choose the correct answer.
Which stereotype depicts that an object node will replace existing tokens with newly arriving tokens when the specified upper limit is reached?

A. «overwrite»
B. «replace»
C. «notbuffer»
D. No stereotype is needed in this case since it describes the default condition

Answer: A

NEW QUESTION # 22
The final version of the diagram must depict that a SoftwareSession is created by some activity of a:User.
Which change must be made to the Initial draft diagram to meet this requirement'

A. No change is required.
B. The first activation on the lifeline SoftwareSession has to be removed
C. The arrow "Start Software" has to cud at the tail and not at the head of the lifeline SoftwareSession.
D. The arrow '"Start Software" has to be solid and with a closed head.

Answer: C

NEW QUESTION # 23
Choose the correct answer.
Given the model composed of the following diagram:

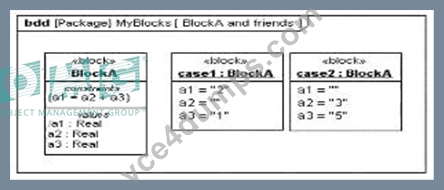

The modeler has set all shown values us inputs and next intends to solve the mode that is, to calculate the outputs. Assume nothing relevant has been left out.
What is wrong with this model?

A. The modeler set a1 as an input value in case1.
B. Both easel and case2 should not be underlined.
C. Block A cannot be used by both easel and case2.
D. The slash (/) in property a1 of BlockA is an error that paramethes will assume to be a division sign.

Answer: B

NEW QUESTION # 24
Choose the correct answer
How can the composition (black diamond) relationship be used to relate Requirements?

A. Composition allows a particularly useful requirement to be reused by multiple higher level requirements or specifications
B. Composition allows a requirement to be decomposed into sub-requirements as long as they don't add to or change the meaning of the original requirement.
C. Composition allows role names to be assigned to sub-requirements thus providing a contextual reference
D. Requirements cannot use composition. They are not classifiers
E. Composition allows requirements to inherit properties and requirements relationships

Answer: C

NEW QUESTION # 25
Choose the correct answer
What is the key distinction between a profile and a meta model?

A. A metamodel is used to define the stereotypes and the properties of a profile.
B. A profile is a mechanism for defining stereotypes, which is not related to metamodels in any way.
C. A metamodel Is the result of applying a profile to a user model to define new domain concepts.
D. A profile is a mechanism for extending existing concepts defined In a metamodel.

Answer: C

NEW QUESTION # 26
Choose the correct answer

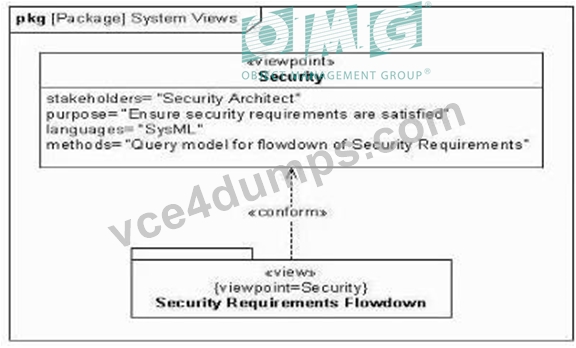

Given the following diagram:

Which statement is true?

A. The Security view imports the Security viewpoint to ensure the security requirements are satisfied
B. The Security viewpoint conforms to the requirements specified by the Security view
C. The Security view is intended to address the purpose specified by the Security viewpoint
D. The Security viewpoint imports the model elements associated with flowing down the security requirements

Answer: C

NEW QUESTION # 27
Choose the correct answer
What is an effective and efficient approach to project modeling standards and conventions?

A. The SysML specification alone is sufficient to describe modeling standards and conventions when the modeling tool has a proper implementation of SysML
B. Organizations should create specific modeling standards and conventions to ensure modeling consistency across projects
C. Every project should create its own domain specific profile to describe modeling standards and conventions
D. The SysML specification and the modeling tool documentation are sufficient to describe modeling standards and conventions

Answer: D

NEW QUESTION # 28
Choose the correct answer.

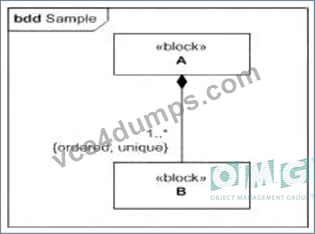

Given the following diagram:

What do the keywords in the braces represent?

A. constraints specifying that the direction of the association is ordered and that an instance of A uniquely consists of instances of B
B. suggestions for improving the efficiency of the design
C. constraints specifying that all instances of B must be ordered in a unique sequence when they are associated with any instance of block A
D. constraints specifying that the set representing the Instances of P is ordered In the context of the association, and all instances are unique

Answer: C

NEW QUESTION # 29
Choose the correct answer.
Given the following diagram:

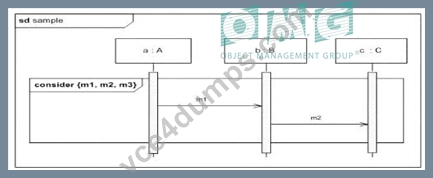

What Is the meaning of the consider fragment?

A. It ignores all messages other than ml m2 and m3 in the scenario being described by the interaction
B. The meaning is undefined because the diagram is ill-formed in the absence of n>3. which must be considered.
C. It is a constraint that prevents adding a nested ignore fragment for any one of ml. m2 or m3.
D. It allows the invocation of the operations corresponding to messages m 1. m? and m3 only when they appear in that order

Answer: C

NEW QUESTION # 30
Choose the correct answer.
Given the following model:

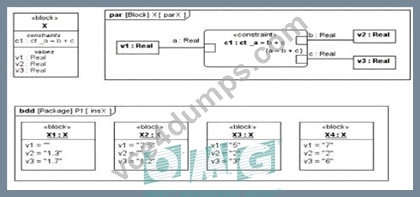

Which statement is true?

A. Only instance X4 is invalid.
B. All instances (X1, X2, X3, and X4) are valid.
C. Only instances X2 and X4 are invalid.
D. Only Instances X1 and X? are invalid

Answer: A

NEW QUESTION # 31
Choose the correct answer.

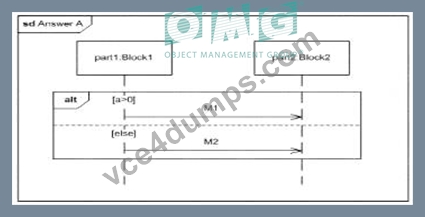

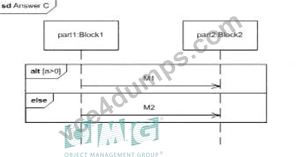

Block 1 has a value property 'a' part 1. typed by Block! sends the message Ml If a»0; otherwise it sends message M2.

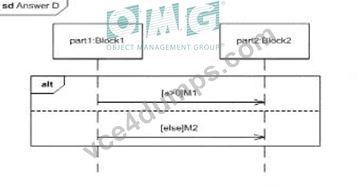

Which diagram depicts this scenario?
