2023 Valid 350-501 test answers & Cisco Exam PDF
Free Cisco 350-501 Exam Questions and Answer from Training Expert VCE4Dumps
NEW QUESTION # 54

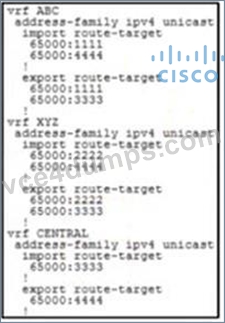

An engineer is setting up overlapping VPNs to allow VRF ABC and XYZ to communicate with VRF CENTRAL nut wants to make sure that VRF ABC and XYZ cannot communicate. Which configuration accomplishes these objectives?
A)
B)
C)
D)
- A. Option A
- B. Option D
- C. Option C
- D. Option B
Answer: C
NEW QUESTION # 55
Refer to the exhibit.

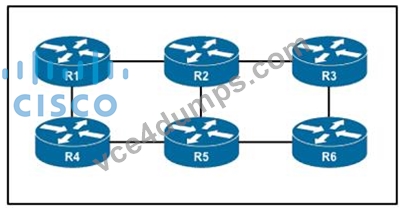

Refer to the exhibit. A network operator working for a private telecommunication company with an employee id: 7138: 13:414 just added new users to the network, which resides in VLANs connected to routers R1 and R4. The engineer now must configure the network so that routers R1 and R4 share routes to the VLANs, but routers R2 and R3 are prevented from including the routes in their routing tables. Which configuration must the engineer apply to R4 to begin implementing the request?
- A. pseudowire -class ciscotest
encapsulation mpls
interface gigabitethernet 1/0/1
xconnect 192.168.1.1 101 pw-class ciscotest - B. pseudowire -class ciscotest
encapsulation mpls
interface gigabitethernet 1/0/1
connect neighbor 192.168.1.1 101 pw-class cisco - C. pseudowire-class ciscotest
encapsulation mpls
service-policy output ciscotest - D. interface serial 2/0/0
frame-relay encapsulation
ip address 192.168.1.4 255.255.255.0
service-policy output ciscotest
Answer: A
NEW QUESTION # 56
How does Inter-AS Option-A function when two PE routers in different autonomous systems are directly connected?
- A. The two routers treat one another as CE routers and advertise unlabeled IPv4 routes through an EBGP session.
- B. The two routers establish an MP-EBGP session to share their customers' respective VPNv4 routes.
- C. The two routers share VPNv4 routes over a multihop EBGP session and set up an Inter-AS tunnel using one another's label.
- D. The two routers share all Inter-AS VPNv4 routes and redistribute routes within an IBGP session to provide end-to-end reach.
Answer: A
NEW QUESTION # 57

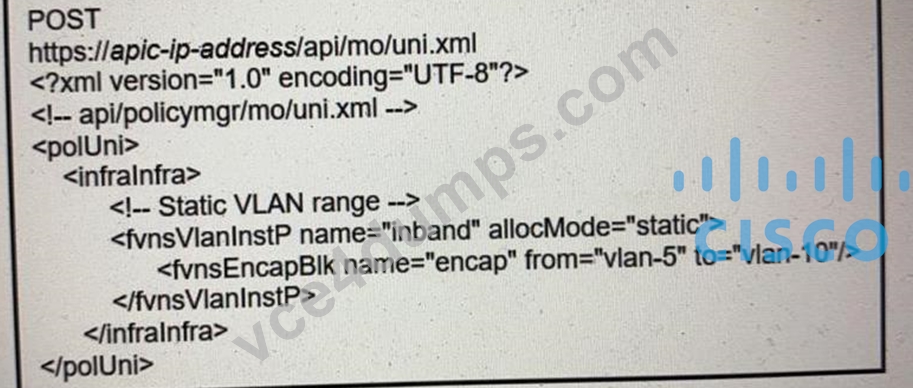

Refer to the exhibit.
What does the script configure?
- A. a physical domain
- B. a VLAN namespace
- C. selectors for the in-band management
- D. a static VLAN
Answer: D
NEW QUESTION # 58

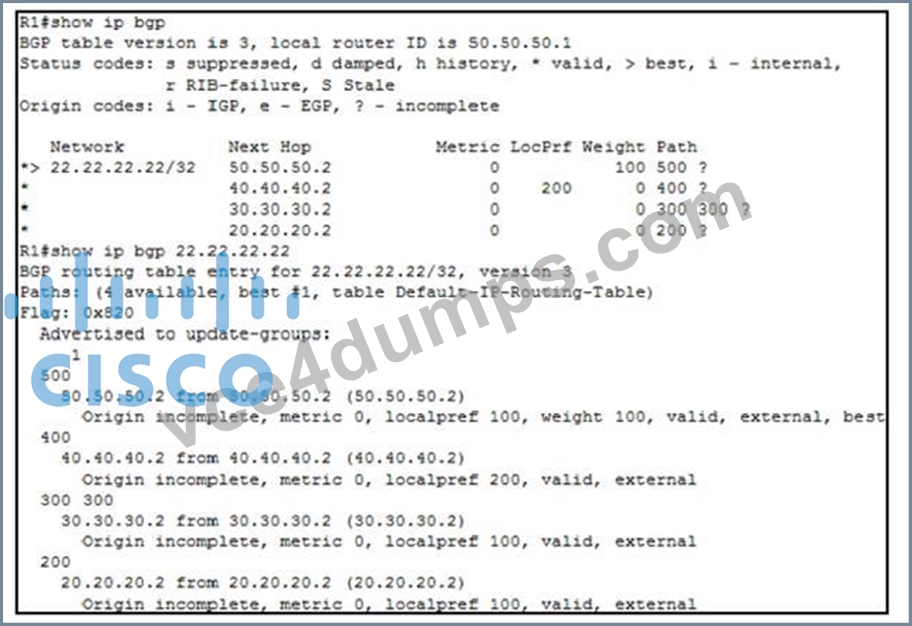

Refer to the exhibit.

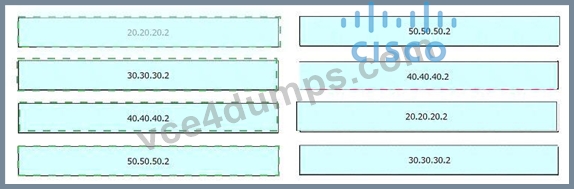

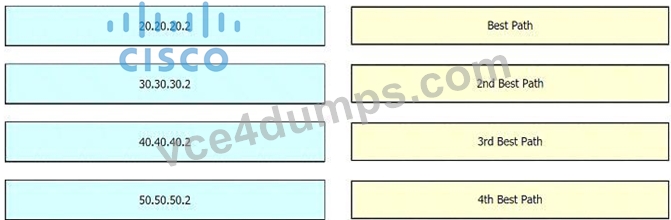

An engineer wants to determine which paths are best, second best, third best, and fourth best. Drag and drop the peer addresses on the left to the corresponding BGP best-path selection order on the right.
Answer:
Explanation:
Explanation
Best - 50.50.50.2
2nd Best - 40.40.40.2
3rd Best - 20.20.20.2
44th Best - 30.30.30.2
NEW QUESTION # 59

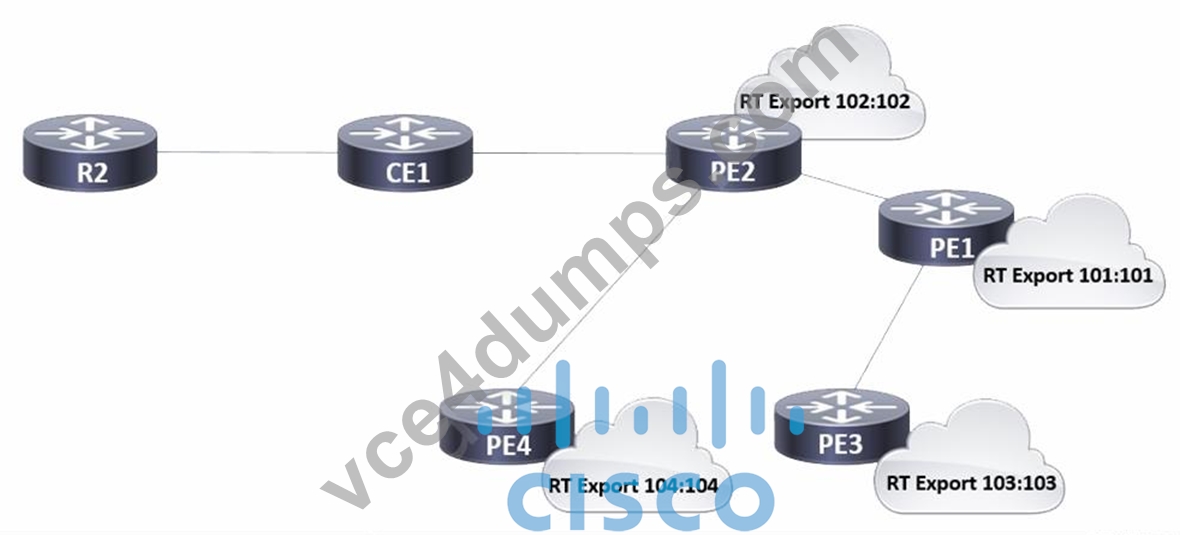

Refer to the exhibit.
In the service provider network, routers PE1, PE2, and PE4 have access to the internet and provide access to customer networks. Router PE3 is used for access to other customer systems. In accordance with a new SLA, an engineer is updating settings on this network so that router CE1 accesses the internet via PE1 instead of PE2. Which two tasks must the engineer perform to complete the process? (Choose two.)
- A. On PE2, configure the CE1 VRF with import route target 101:101.
- B. On PE1 and PE4, configure the internet VRF with import route targets 102:102 and 104:104.
- C. On PE2 and PE3, configure the internet VRF with import route target 101:101.
- D. On PE2, configure the internet VRF with import route target 102:102.
- E. On PE1, configure the internet VRF with import route target 102:102.
Answer: A,E
Explanation:
https://www.cisco.com/c/en/us/support/docs/mpls-vpns/multiprotocol-label-switching-mpls/23986-mpls-vpns-config-example.html
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l3_vpns/configuration/15-mt/mp-l3-vpns-15-mt-book/mp-bgp-mpls-vpns.html
NEW QUESTION # 60

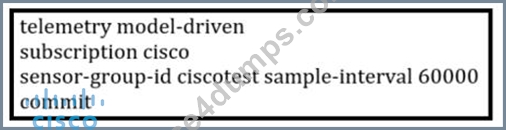

Refer to the exhibit:
This configuration is being applied on an IOS XR router.
Which statement about this configuration is true?
- A. It is used to enable gRPC
- B. It is used to create a streaming subscription with a 60-second interval
- C. It is used to create a streaming subscription with a 600-second interval
- D. It is used to set up configuration to poll network data
Answer: B
NEW QUESTION # 61
Refer to the exhibit.
An engineer is configuring an administrative domain in the given multi-vendor environment with PIM-SM. Which feature must the engineer implement so that devices will dynamically learn the RP?
- A. Auto-RP
- B. SSM
- C. BSR
- D. BIDIR-PIM
Answer: C
NEW QUESTION # 62

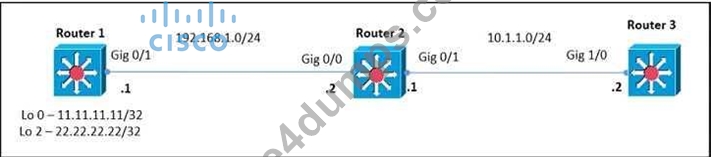

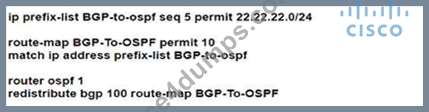

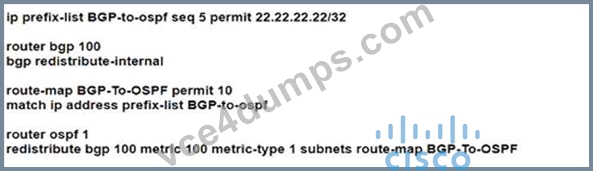

Refer to the exhibit. Router 1 and router 2 are running BGP. and router 2 and router 3 are running OSPF Area 0. Router 1 is advertising loopback interlaces Lo 0 and lo 2. and router 2 is redistributing BGP into OSPF Area 0.

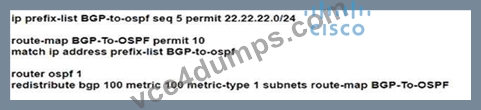

Which configuration must an administrator apply so that router 2 uses a route map to redistribute only the internal route from Lo 2?
- A.
- B.
- C.
- D.
Answer: B
NEW QUESTION # 63

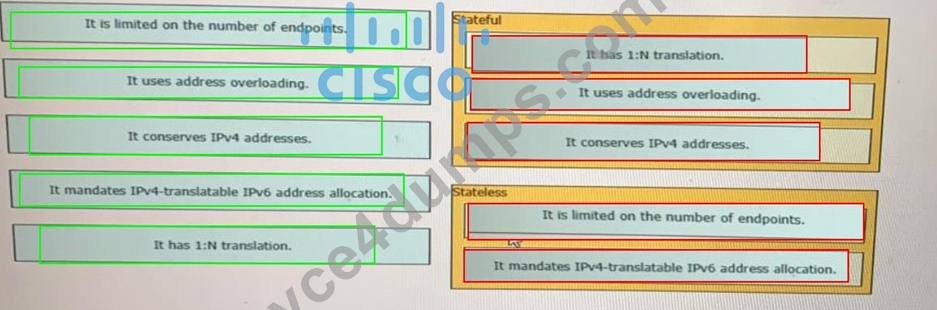

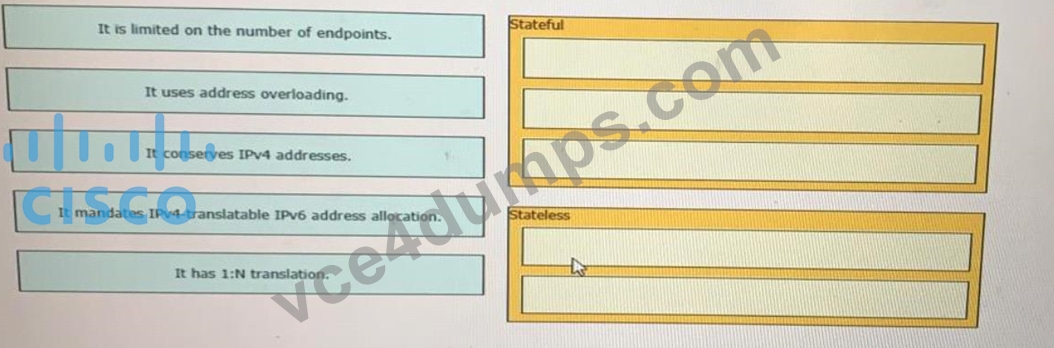

Drag and drop the NAT64 descriptions from the left onto the correct NAT64 types on the right.
Answer:
Explanation:
NEW QUESTION # 64
Refer to the exhibit.

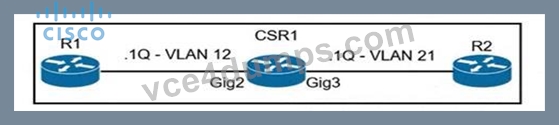

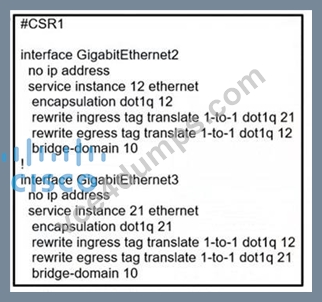

A network operator must configure CSR1 interfaces GigabilEthemet2 and GigabitEthemet3 to rewrite VLAN tags 12 and 21 for traffic between R1 and R2 respectively. Which configuration accomplishes this task?
A)
B)
C)
D)
- A. Option A
- B. Option D
- C. Option B
- D. Option C
Answer: C
Explanation:
NEW QUESTION # 65

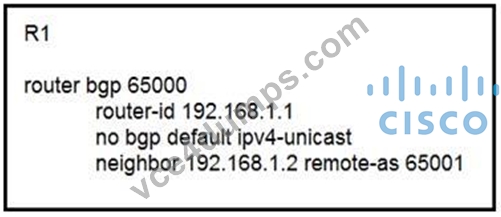

Refer to the exhibit. Which task completes the configuration?
- A. Specify the local-as value in the neighbor statement.
- B. Specify the activate neighbor 192.168.1.2 under the IPv4 address family.
- C. Specify the maximum number of prefixes that R1 receives from neighbor 192.168.1.2.
- D. Specify the source interface in the neighbor statement.
Answer: B
NEW QUESTION # 66

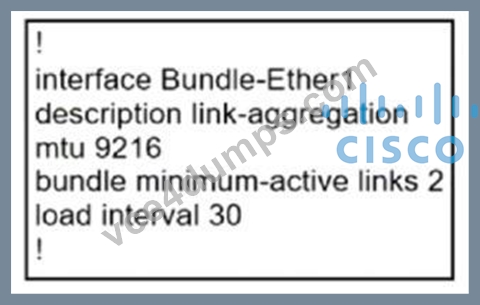

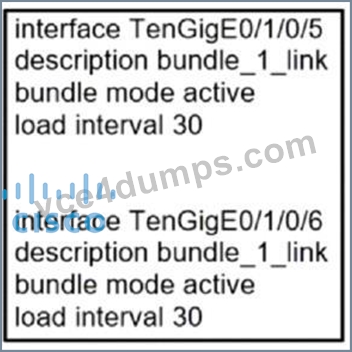

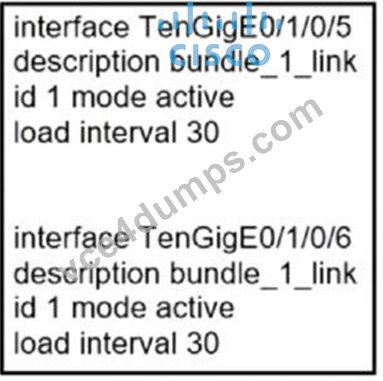

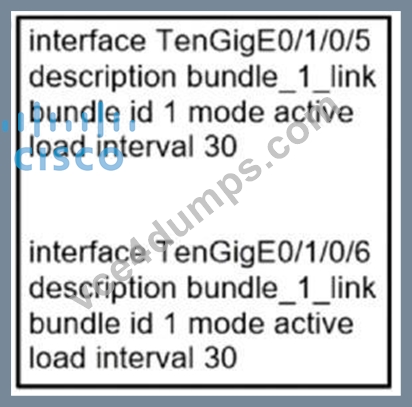

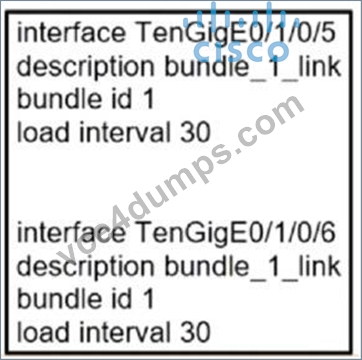

Refer to the exhibit. Which the link aggregation configuration router is running on Cisco IOS XR software, which LACP interface configuration is needed to add the interface to the bundle?
- A.
- B.
- C.
- D.
Answer: D
NEW QUESTION # 67
Which statement describes the advantage of a Multi-Layer control plane?
- A. It provides multivendor configuration capabilities for Layer 3 to Layer 1.
- B. It supports dynamic wavelength restoration in Layer 0.
- C. It automatically provisions, monitors, and manages traffic across Layer 0 to Layer 3.
- D. It minimizes human error configuring converged networks.
Answer: A
Explanation:
Section: Architecture
NEW QUESTION # 68

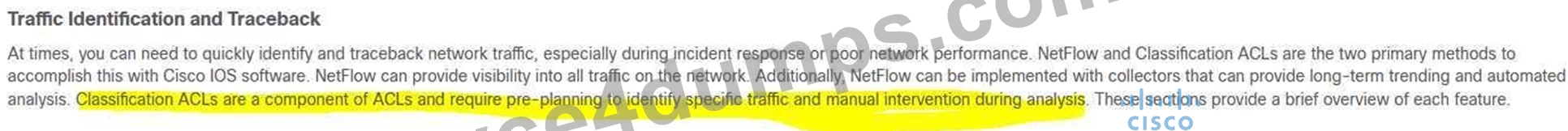

Which additional configuration is required for NetFlow to provide traceback information?
- A. A classification ACL must be configured to identify which type of traffic will be analyzed.
- B. The BGP routing process must be started for any ingress or egress data to be reported when using NetFlow. Version 5.
- C. Cisco Express Forwarding must be configured for traffic that is egressing from the router to be properly reported.
- D. LLDP must be configured or the device will be unable to locate a NetFlow analyzer.
Answer: A
Explanation:
NEW QUESTION # 69

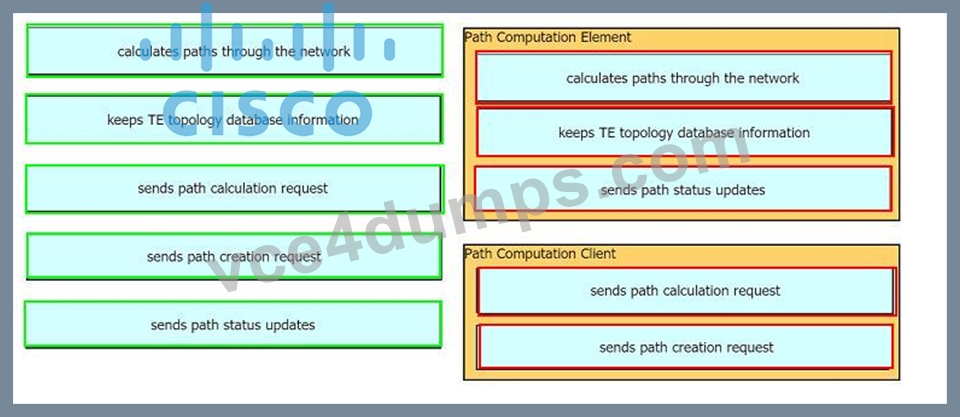

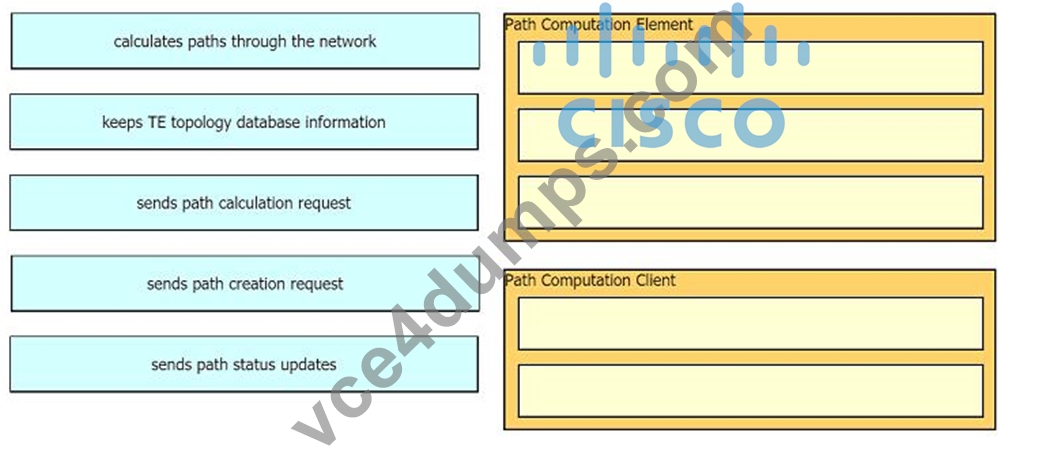

Drag and drop the functions from the left onto the Path Computation Element Protocol roles on the right.
PCE - 1,2,5
PCC- 3,4
Answer:
Explanation:
NEW QUESTION # 70
Which QoS model allows hosts to report their QoS needs to the network?
- A. IntServ
- B. MQC
- C. DiffServ
- D. CB-WFQ
Answer: A
Explanation:
IntServ follows the signaled-QoS model, where the end-hosts signal their QoS needs to the network.
https://www.cisco.com/en/US/technologies/tk543/tk766/technologies_white_paper09186a00800a
3e2f.html
NEW QUESTION # 71

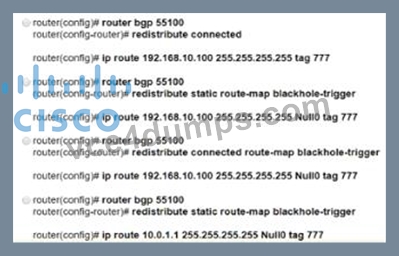

Refer to the exhibit. EIGRP a running across the core lo exchange Internal routes, and each router maintains 6GP adjacency with the other routers on the network. An operator has configured static routes on the edge routers R1 and R2 for IP address 10.0.1.1. which is used as a black hole route as shown. Which configuration should the operator Implement to me management rouler to create a route map that will redistribute lagged static routes into BGP and create a static route to blackhole traffic with tag 777 that Is destined to server at 192.168.10.100?
- A. Option A
- B. Option C
- C. Option D
- D. Option B
Answer: C
NEW QUESTION # 72
What are two characteristics of MPLS TE turrets? (Choose two)
- A. They are unidirectional
- B. They are run over Ethernet cores only.
- C. The headend and tailend routes of the tunnel must have a BGP relationship
- D. They use RSVP to provide bandwidth for the tunnel.
- E. They require EIGRP to be running in the core.
Answer: A,D
NEW QUESTION # 73
Which component is similar to an EVPN instance?
- A. VRF
- B. router distinguisher
- C. IGP router ID
- D. MPLS label
Answer: A
Explanation:
Section: Architecture
NEW QUESTION # 74

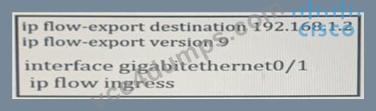

Refer to the exhibit:
Which information is provided for traceback analysis when this configuration is applied?
- A. IP sub flow cache
- B. BGP version
- C. source interface
- D. packet size distribution
Answer: B
NEW QUESTION # 75

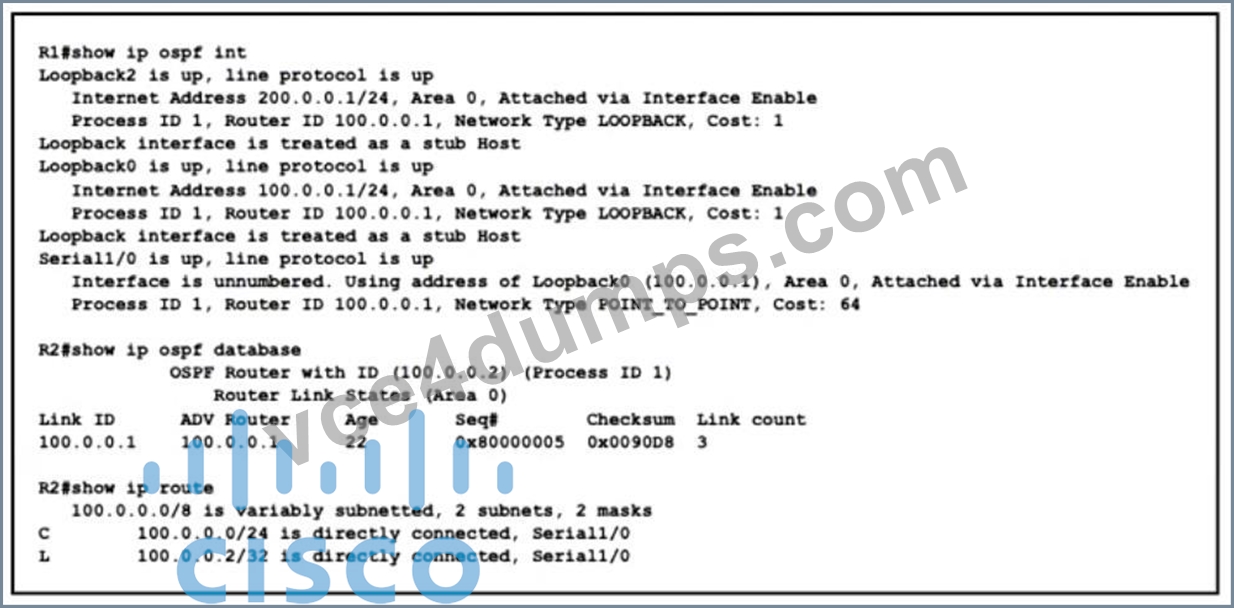

Refer to the exhibit. While troubleshooting a connectivity issue on router R2, a network engineer with an employee id:3876.13.497 notices that although it detects three OSPF links from R1, the OSPF prefixes are missing from the routing table. What is the reason for the problem?
- A. The serial interfaces have different MTUs
- B. The subnet masks on the serial interfaces are mismatched.
- C. Both loopback interfaces on R1 are configured as stub
- D. The R2 Serial 1/0 interface is configured with an IP address, but the R1 Serial R1 Serial 1/0 interface in unnumbered.
Answer: D
NEW QUESTION # 76

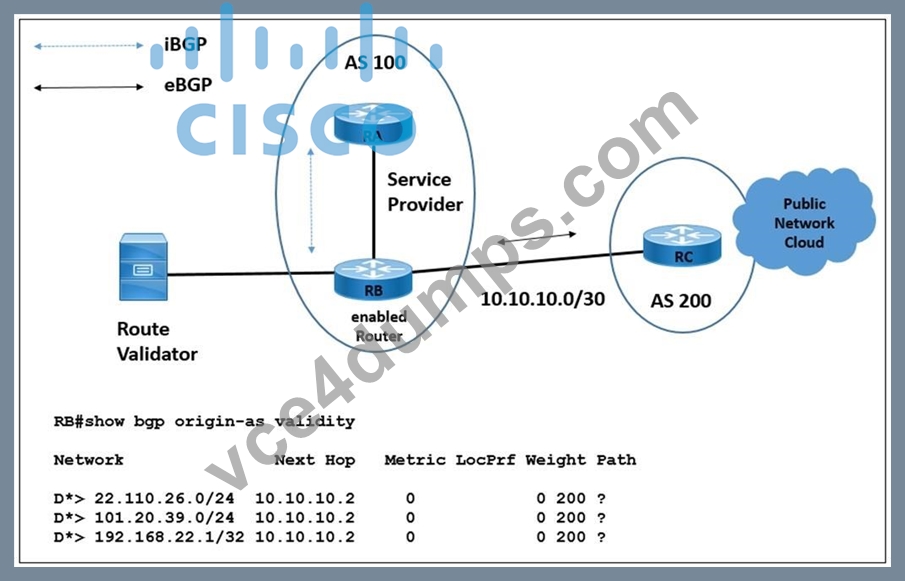

Refer to the exhibit. A network engineer is configuring router RB to secure BGP advertisements against route hijacking activity. RB must validate all prefixes that it receives from origin AS 200 before installing them in the BGP route table. Which configuration meets the requirement?
- A. RB(config-bgp)# router bgp 100
RB(config-bgp)# bgp origin-as validation signal ibgp
RB(config-bgp)# bgp bestpath origin-as allow invalid - B. RB(config)# router bgp 100
RB(config-router)# address-family ipv4 unicast
RB(config-router-af)# bgp bestpath origin-as use validity - C. RB(config)# router bgp 100
RB(config-router)# address-family ipv4 unicast
PB(config-router-af)# bgp origin-as validation enable - D. RB(config-bgp)# router bgp 100
RB(config-bgp)# bgp origin-as validation time off
Answer: B
NEW QUESTION # 77

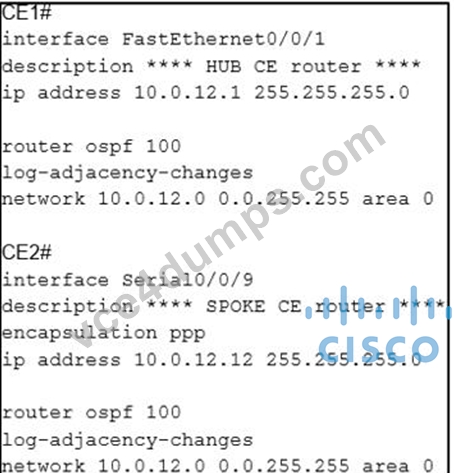

Refer to the exhibit.
A network engineer is configuring customer edge routers to finalize a L2VPN over MPLS deployment Assume that the AToM L2VPN service that connects the two CEs is configured correctly on the service provider network Which action causes the solution to fail?
- A. OSPF does not work with L2VPN services
- B. The xconnect statement has not been defined
- C. A loopback with a /32 IP address has not been used
- D. The routing protocol network types are not compatible
Answer: D
NEW QUESTION # 78
......
To prepare for 350-501 exam, candidates must acquire command over core service provider network technologies such as OSPF, BGP, IS-IS, MPLS, Segment Routing, Quality of Service (QoS), and Network Programmability. One can use Cisco’s official preparation guide or utilize other study materials such as practice exams, test questions, and video courses.
Exam Details
Cisco 350-501 is a core exam and the applicants will have 120 minutes to cover all the questions of its content. There will be about 90-110 items that can be presented in the following formats: multiple choice, drag and drop, testlets, or fill-in-the-blank. The students are required to gain about 750-850 points for passing this test. Please note that this certification exam is available in English only.
Moreover, the test takers have to be ready to pay the fee of $400. This payment allows them to register and schedule the exam through the Pearson VUE platform that provides them with the opportunity to choose the appropriate delivery option. Thus, if you want to take Cisco 350-501 from the comfort of your office or home, you can opt for online testing. On the other hand, you can choose the in-person variant and have the exam at one of the Cisco testing centers.
