Nokia 4A0-205 exam, also known as Nokia Optical Networking Fundamentals, is a certification exam that focuses on optical networking concepts and technologies. 4A0-205 exam is designed for individuals who want to enhance their understanding of optical networking and gain recognition in the industry. The Nokia 4A0-205 exam covers various topics such as optical networking technologies, optical transmission systems, optical fiber cables, and network planning and operations.

Nokia 4A0-205 certification exam is an essential credential for professionals in the optical networking field. It demonstrates a deep understanding of the principles and technologies that underpin modern optical networks and provides a valuable asset for those looking to enhance their careers or improve their organization's network infrastructure.



NEW QUESTION # 34
Which statement is correct about the NFM-T network map?

• A. It represents all supervised nodes grouped by alarm status (with a different color).
• B. It automatically represents all nodes grouped by the location string assigned during the NE creation.
• C. It allows context sensitive navigation and represents nodes and related physical connections with different colors. depending on the active alarms.
• D. It allows the graphical visualization of the services deployed in the network with the details of the boards involved in the service.

Answer: C

Explanation:
The NFM-T network map provides a graphical view of the network with different colors used to represent each node, physical connection, and active alarm. It allows the user to quickly identify any issues in the network and provides context sensitive navigation.

NEW QUESTION # 35
By using the EPT run design command, are the previously designed elements removed?

• A. Yes, although this is not happening in case of GMPLS-enabled nodes because existing slots cannot change as they are controlled by another manager (GMRE).
• B. Yes, they are but only the first time the command is launched as - for future design phases - the existing packs need to keep the same slotting.
• C. Not the design is always progressive, on top of the previous design.
• D. It depends, the user is prompted to choose whether to delete or leave the previously designed elements.

Answer: D

Explanation:
The EPT run design command can remove previously designed elements, but the user is prompted to choose whether to delete them or leave them intact. This allows the user to progress their design while still keeping the existing elements in place. If the user selects to leave the existing elements, then they will remain in the same slots. If GMPLS nodes are used, the existing slots cannot change as they are controlled by another manager (GMRE).

NEW QUESTION # 36
Which of the following statements about the contentionless feature on a CDC-F node is TRUE?

• A. It represents the ability to drop any lambda from any Add/Drop block port.
• B. It represents the ability to reroute lambdas to any direction.
• C. It represents the ability to drop the same wavelength from different degrees.
• D. It represents the ability to support the Fixed Grid standard.

Answer: C

Explanation:
Comprehensive and Detailed Explanation From Nokia Optical Networking Fundamentals:
The term CDC-F stands for Colorless, Directionless, Contentionless, and Flex-grid. While "Colorless" allows any wavelength on any port and "Directionless" allows any port to be routed to any output fiber (degree), Contentionless solves a specific physical limitation of traditional multiplexers. In a standard ROADM, you cannot drop the same wavelength (e.g., Channel 21) from two different directions (e.g., North and West) into the same add/drop structure because they would "contend" or collide on the same internal fiber.
A Contentionless architecture (typically utilizing a Multicast Switch or MCS) allows the node to drop the same wavelength from different degrees simultaneously without interference. This is critical for high-availability mesh networks where a single transponder might need to receive a specific wavelength from a primary path and a backup path. Without contentionless capabilities, operators would have to carefully manage wavelength assignments across the entire network to ensure no two identical frequencies ever meet at the same drop structure, which significantly complicates planning and restoration.

NEW QUESTION # 37
What is the function of the express channel interface?

• A. It enables the high speed route for all channels passing through that interface.
• B. It drops high capacity channels in the local node.
• C. It passes all the channels not terminated in the local node through the downstream node.
• D. It enables the high speed route for all channels terminated in the local node.

Answer: C

Explanation:
Comprehensive and Detailed Explanation From Nokia Optical Networking Fundamentals:
In the context of WDM (Wavelength Division Multiplexing) node architecture, an express channel interface (often associated with OADMs or ROADMs) is specifically designed to handle "through" traffic. In a multi-node optical network, not every wavelength (channel) needs to be processed or terminated at every site it passes. To maintain signal integrity and reduce latency, these wavelengths are kept in the optical domain.
The express interface allows these optical channels-those not terminated or "dropped" at the local node-to bypass the local transponders and multiplexers, flowing directly to the downstream node. This photonic bypass avoids unnecessary O-E-O (Optical-Electrical-Optical) conversions, which would otherwise require expensive hardware and increase power consumption. By utilizing express paths, the Nokia 1830 PSS can scale to support massive core network capacities while ensuring that only the relevant traffic is diverted to the local client-facing ports.

NEW QUESTION # 38
Is it possible to mix PSS-24x and PSS-8x shelves In an SWDM configuration?

• A. Yes, but the PSS-8X shelf must be configured as a master
• B. No, as they are not compatible and cannot be used within the same node
• C. Yes, as both can be equipped within the same node
• D. Yes, but the PSS-24X shelf must be configured as a master

Answer: B

Explanation:
No, it is not possible to mix PSS-24x and PSS-8x shelves in an SWDM (Short Wavelength Division Multiplexing) configuration. The two shelves are not compatible, and cannot be used within the same node.

NEW QUESTION # 39
Which of the following statements about the ODUk unit is TRUE?

• A. The ODUk is the first container in which the client signal is inserted.
• B. The ODUk is the basic payload that can be electronically groomed and switched in the OTN network.
• C. The ODUk is processed at an optical level.
• D. The ODUk contains the FEC.

Answer: B

Explanation:
Comprehensive and Detailed Explanation From Nokia Optical Networking Fundamentals:
In the Optical Transport Network (OTN) hierarchy, the ODUk (Optical Data Unit of order k) is the fundamental unit for electronic grooming and switching. Unlike the OTUk layer, which is tied to a specific physical optical interface and includes the Forward Error Correction (FEC), the ODUk layer is "path-oriented." This means that in a switched WDM system like the Nokia 1830 PSS-24x, the ODUk containers can be switched across a backplane from one line card to another without needing to deconstruct the entire optical signal.
To clarify the other options: Option A is false because FEC is part of the OTUk (Transport Unit) layer. Option C is false because ODUk processing is entirely electrical (O-E-O must occur to access the ODUk overhead). Option D is false because the OPU (Optical Payload Unit) is actually the "first" container where the client signal is mapped; the ODUk then wraps around the OPU to add path-level monitoring and maintenance signals. Therefore, the ODUk acts as the "virtual container" that allows the network to manage services end-to-end across multiple optical spans.

NEW QUESTION # 40
Which of the following statements about Wavelength Tracker monitoring points in CDC-F architecture is TRUE?

• A. Wavelength Tracker monitoring points are settled on ITL mux interfaces and on OTs line interfaces.
• B. Wavelength Tracker monitoring points are settled on IRDMxx and OTs line interfaces.
• C. Wavelength Tracker monitoring points are settled on IRDMxx line interfaces only.
• D. Wavelength Tracker monitoring points are settled on IRDMxx line interfaces and on CWR CLS interfaces.

Answer: D

Explanation:
Comprehensive and Detailed Explanation From Nokia Optical Networking Fundamentals:
In a CDC-F (Colorless, Directionless, Contentionless, Flex-grid) architecture, the placement of monitoring points is vital for end-to-end visibility of wavelengths. Nokia's Wavelength Tracker technology relies on these points to detect the unique "keys" or signatures associated with each wavelength. In a CDC-F node, the primary monitoring points are located on the IRDMxx (Intelligent Reconfigurable Demultiplexer/Mux) line interfaces and the CWR (Colorless Wavelength Router) CLS (Colorless) interfaces.
The IRDM monitoring points allow the system to verify the power and presence of wavelengths as they enter or leave the fiber spans (degrees). The CWR CLS monitoring points are critical because they provide visibility at the "Colorless" add/drop stage. By having monitoring at both locations, the WaveSuite Network Operations Center (WS-NOC) can pinpoint exactly where a signal loss or power degradation is occurring-whether it's in the external fiber plant or within the internal colorless switching fabric of the ROADM. This granular visibility is what allows Nokia's "Power Management" to automate balancing across complex mesh topologies.

NEW QUESTION # 41
Which use case is most suitable for the deployment of a star topology?

• A. ASON networks, to protect traffic via GMPL5 protocols
• B. Access networks, for collecting traffic towards the main central node
• C. SNCP-protected links
• D. Backbone networks, for supporting protection routes

Answer: B

Explanation:
A star topology is a network design where all devices are connected to a central hub, which acts as a central point of control and management for the network. This type of topology is commonly used in access networks, where a central node is used to aggregate traffic from multiple users or devices, and then forward it to the core network. This design allows for efficient use of resources and easy management of the network.
Reference:
"Computer Networking: A Top-Down Approach" by James Kurose and Keith Ross (Chapter 3)
"Data Communications and Networking" by Behrouz A. Forouzan (Chapter 2)

NEW QUESTION # 42
Which of the following are the main reasons for fiber attenuation?

• A. Small channel spacing
• B. Refraction and reflection
• C. Chromatic dispersion (CD) and polarization mode dispersion
• D. Scattering and absorption

Answer: D

NEW QUESTION # 43
Which of the following sentences about FlexGrid is false?

• A. FlexGrid systems use specific sets of boards. Old generation WDM systems need to be upgraded to support FlexGrid.
• B. FlexGrid allows a more efficient channel spacing.
• C. The FlexGrid is currently standardized by ITU-T.
• D. Channels in FlexGrid systems are allocated with a granularity of 27.5GHz.

Answer: A

Explanation:
FlexGrid is a flexible grid technology that allows for variable channel spacing and bandwidth allocation. It uses the same sets of boards as the traditional fixed grid systems and it does not require upgrading the old generation WDM systems.
Reference:
"Flexible Grid Optical Networks: From Concepts to Realizations" by Diomidis S. Michalopoulos and George K. Karagiannidis
"Flexible Grid and Flexible Spectrum Optical Networks" by Diomidis S. Michalopoulos and George K. Karagiannidis
"Flexible Grid Optical Networks" by Diomidis S. Michalopoulos and George K. Karagiannidis

NEW QUESTION # 44
When monitoring the quality of the received signal in WDM, an open eye indicates:

• A. High jitter
• B. High distortion
• C. Presence of high inter-symbolic interference
• D. Low noise

Answer: D

Explanation:
An open eye pattern indicates that the signal is not affected by noise, and the received signal is of high quality. This is because an open eye pattern is the result of a signal that is aligned in time, and is not affected by noise or other distortions.
Reference:
"Optical Fiber Communications" by Gerd Keiser
"Fiber-Optic Communications Technology" by Djafar K. Mynbaev
"Optical Communications" by Gerd Keiser

NEW QUESTION # 45
What is a Shared Risk Group (SRG)?

• A. A set of fibers that share the same latency risk
• B. A set of network resources that share a common failure risk
• C. A set of boards that share the same failure risk
• D. A set of nodes that share a common risk of hardware failure

Answer: B

Explanation:
According to the Nokia Optical Networking documentation, a Shared Risk Group (SRG) is defined as "a set of network resources that share a common failure risk. When a resource in an SRG fails, the other resources in the group are also affected." This can include fibers, boards, nodes, and other network resources. The SRG concept is used in network design and protection mechanisms to ensure survivability and minimal impact on service in case of a failure.

NEW QUESTION # 46

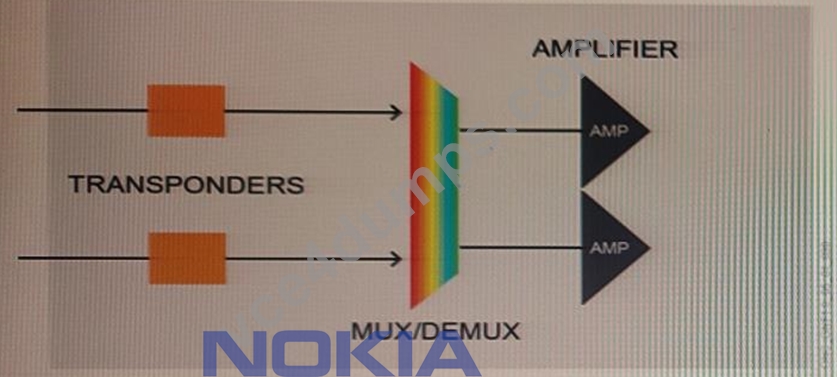

With reference to the image, where is the OPS card placed to provide the OMSP protection?

• A. Between the mux/demux and the amplifier
• B. Between the transponders and the mux/demux
• C. Before the transponder, on the client side, towards the external device
• D. After the amplifiers

Answer: C

NEW QUESTION # 47
What is the definition of OSNR?

• A. The OSNR is defined as the ratio between the average optical signal power and the average optical noise power over a specific spectral bandwidth.
• B. The OSNR is defined as the ratio between the optical signal power (including noise) and the optical noise power over a specific spectral bandwidth.
• C. The OSNR is defined as the ratio between the transmitted optical power and the received optical power over 1 km of fiber including both signal and optical noise.
• D. The OSNR is the ratio between the optical output signal power and the optical input signal power of the device being analyzed.

Answer: A

Explanation:
The OSNR is defined as the ratio between the average optical signal power and the average optical noise power over a specific spectral bandwidth. This is also known as the signal-to-noise ratio (SNR), and it is a measure of how much signal is present in the optical signal compared to the noise, usually expressed in decibels (dB).

NEW QUESTION # 48
What is the purpose of the validate step in the EPT design process?

• A. During this step, the configuration available on the involved network elements is compared with the design provided by EPT.
• B. This step is used to measure optical power performances over an existing network before making changes.
• C. This step is optional and is useful to verify the network element layout before going through the commission step.
• D. During this step, the run design action is triggered for network design consistency check and errors fixing.

Answer: D

Explanation:
The validate step in the EPT design process is used to trigger the run design action, which is responsible for verifying the consistency of the network design and fixing any errors that may exist. During the validation process, the system will compare the configuration available on the involved network elements and the design provided by EPT, and any discrepancies will be flagged for further investigation or correction.

NEW QUESTION # 49
A user needs to check for interface details against the commands is the correct one?

• A. config interface detail 1/17/L1
• B. 11starla 1/17 port-detail
• C. config card 11star1a interface 1/17 detail
• D. show interface 11starla 1/17/L1 detail

Answer: D

Explanation:
show interface 11starla 1/17/L1 detail is the correct command to check for interface details. This command will display detailed information about the specified interface, including its status, configuration, and statistics.

NEW QUESTION # 50
Which of the following statements is true about chromatic dispersion (CD)?

• A. Different channels have different bandwidth and this causes different CD performances.
• B. The fiber attenuation introduces inter-channel interference.
• C. Different wavelengths propagate at different speeds within the same media and therefore different colors travel in the fiber with different speed.
• D. The fiber attenuation changes along the fiber, and when the light crosses these differences the CD takes place.

Answer: C

Explanation:
Different wavelengths propagate at different speeds within the same media and therefore different colors travel in the fiber with different speed. This phenomenon is known as chromatic dispersion and causes light to spread out as it travels through the fiber over distance, leading to signal attenuation and distortion. The fiber attenuation does not introduce inter-channel interference, but it can cause attenuation of the signal. Different channels have different bandwidths, but this does not affect CD performance.

NEW QUESTION # 51
Where can the user set the long-haul WT decoder parameter, when designing a network with EPT?

• A. In the optimization parameters
• B. In the network parameters
• C. In the audit menu
• D. In the NE parameters

Answer: D

Explanation:
The long-haul WT decoder parameter can be set in the NE parameters when designing a network with EPT. This parameter is used to adjust the sensitivity of the decoder and can help to improve the accuracy of the measurements for long-haul WTs.
The Network Element (NE) parameters in EPT (Element Planning Tool) are used to configure various settings and options for the network elements in the network. The long-haul WT decoder parameter is one such setting that can be configured in the NE parameters section. The user can access the NE parameters by navigating to the NE Parameters menu within the EPT interface. The user can then select the appropriate network element and modify the settings as needed. This information can be found in the Nokia guide for EPT.

NEW QUESTION # 52
Which mechanisms can be put in place to increase network survivability?

• A. Protection, where backup resources are pre-allocated and reserved; or restoration, where each trail can be recovered thanks to a 1+1 protection mechanism
• B. Protection, where backup resources are pre-allocated and reserved; or restoration, where backup resources are allocated upon failure.
• C. Protection, where backup resources are allocated upon failure; or restoration, where backup resources are pre-allocated and reserved
• D. Protection, where backup resources are allocated upon failure; or restoration, where each trail can be recovered thanks to a 1+1 protection mechanism

Answer: B

Explanation:
There are two main mechanisms that can be put in place to increase network survivability: protection and restoration. Protection involves pre-allocating and reserving backup resources so that they are ready in case of a failure. Restoration involves allocating backup resources upon failure and using a 1+1 protection mechanism to recover each trail. This ensures that the network is able to re-route traffic in the event of a failure, increasing the overall survivability of the network.

NEW QUESTION # 53
......
